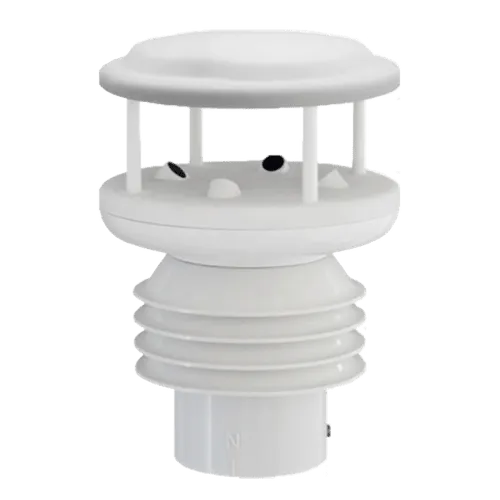

Thies Clima Sensor US Weather Station
The Thies Clima Sensor US S81950 is an advanced all-in-one compact weather station combining ultrasonic wind, temperature, humidity, pressure, precipitation, brightness, GPS and Modbus communication.
Typical Applications
- Automatic weather stations
- Meteorological networks
- Wind-farm monitoring
- Renewable-energy sites
- Environmental monitoring
- Smart-city weather systems
- Agricultural monitoring
- Building automation
- Research stations
- Remote weather observation
Product Enquiry
Thies Clima Sensor US Weather Station
The Thies Clima Sensor US S81950 is an advanced all-in-one compact weather station combining ultrasonic wind, temperature, humidity, pressure, precipitation, brightness, GPS and Modbus communication.
Typical Applications
- Automatic weather stations
- Meteorological networks
- Wind-farm monitoring
- Renewable-energy sites
- Environmental monitoring
- Smart-city weather systems
- Agricultural monitoring
- Building automation
- Research stations
- Remote weather observation
The Thies Clima Sensor US S81950 is a professional compact all-in-one weather station designed to acquire multiple meteorological parameters from a single rugged instrument, including 2D ultrasonic wind speed and direction, air temperature, relative humidity, barometric pressure, precipitation and brightness. Wind is measured without moving parts using orthogonal ultrasonic paths for inertia-free gust and peak-value detection, while precipitation is detected contactlessly using Doppler radar, temperature and humidity use an integrated precision combination sensor, and pressure is measured using MEMS piezoresistive technology. The system also incorporates a GPS receiver for position, time and sun-position calculations, RS485/RS422 communication, Modbus RTU support and integrated heating, making it suitable for advanced automatic weather stations, environmental networks and renewable-energy monitoring systems.
Key Features
- Multi-parameter compact weather station
- 2D ultrasonic wind measurement
- 0–60 m/s wind-speed range
- 0–360° wind direction
- ±2° wind-direction accuracy above 2 m/s
- Temperature measurement
- Relative-humidity measurement
- Barometric-pressure measurement
- Contactless Doppler precipitation measurement
- Brightness measurement
- Integrated GPS receiver
- Sun-position calculation
- RS485 / RS422 interface
- Modbus RTU communication
- Built-in heating
- IP67 housing
Product Models
S81950
- Thies Clima Sensor US Weather Station S81950
- Compact multi-parameter professional meteorological measurement station
- Measures 2D ultrasonic horizontal wind speed and wind direction
- Wind speed measurement range up to 60 m/s
- Wind direction measurement range 0 to 360 degrees
- Integrated measurement of air temperature and relative humidity
- Integrated MEMS piezoresistive barometric pressure measurement
- Contactless Doppler radar precipitation detection and intensity measurement
- Integrated brightness sensors for environmental light measurement
- GPS receiver provides position time and sun-position information
- RS485 and RS422 serial digital communication interfaces
- Modbus RTU protocol available for standardised system integration
- Integrated heating supports operation in challenging weather conditions
- UV-stabilised impact-resistant LEXAN polycarbonate housing
- IP67 construction for permanent professional outdoor monitoring
The Thies Clima Sensor US S81950 is a professional compact all-in-one weather station designed to acquire multiple meteorological parameters from a single rugged instrument, including 2D ultrasonic wind speed and direction, air temperature, relative humidity, barometric pressure, precipitation and brightness. Wind is measured without moving parts using orthogonal ultrasonic paths for inertia-free gust and peak-value detection, while precipitation is detected contactlessly using Doppler radar, temperature and humidity use an integrated precision combination sensor, and pressure is measured using MEMS piezoresistive technology. The system also incorporates a GPS receiver for position, time and sun-position calculations, RS485/RS422 communication, Modbus RTU support and integrated heating, making it suitable for advanced automatic weather stations, environmental networks and renewable-energy monitoring systems.
Key Features
- Multi-parameter compact weather station
- 2D ultrasonic wind measurement
- 0–60 m/s wind-speed range
- 0–360° wind direction
- ±2° wind-direction accuracy above 2 m/s
- Temperature measurement
- Relative-humidity measurement
- Barometric-pressure measurement
- Contactless Doppler precipitation measurement
- Brightness measurement
- Integrated GPS receiver
- Sun-position calculation
- RS485 / RS422 interface
- Modbus RTU communication
- Built-in heating
- IP67 housing
Additional information
| Models | S81950 |
|---|
