Compact Weather Station
Compact multi-parameter weather monitoring with configurable temperature, humidity, pressure, wind, precipitation and solar radiation sensing for standalone or integrated systems.
Typical Applications
- Automated Weather Observing Systems
- Environmental data logging
- Road and traffic weather monitoring
- Remote meteorological monitoring stations
- Infrastructure weather monitoring
- Custom automated weather systems
Product Enquiry
Compact Weather Station
Compact multi-parameter weather monitoring with configurable temperature, humidity, pressure, wind, precipitation and solar radiation sensing for standalone or integrated systems.
Typical Applications
- Automated Weather Observing Systems
- Environmental data logging
- Road and traffic weather monitoring
- Remote meteorological monitoring stations
- Infrastructure weather monitoring
- Custom automated weather systems
The Compact Weather Station provides lightweight, all-in-one meteorological monitoring for environmental, infrastructure and automated weather applications. The 9620 Series combines configurable measurements such as temperature, humidity, air pressure, precipitation, ultrasonic wind, compass direction and solar radiation in compact weatherproof instruments that can operate as standalone sensors or integrate with larger automated weather systems.
Key Features
- Lightweight all-in-one weather monitoring platform
- Multiple sensor configurations for different applications
- Accurate temperature, humidity and pressure measurement
- Ultrasonic wind measurement on selected models
- Radar-based precipitation measurement on selected models
- Integrated compass on wind-enabled configurations
- Solar radiation measurement available on selected models
- Suitable for standalone or integrated automated weather systems
The seven-model range allows the monitoring package to be matched to the actual site requirement, avoiding unnecessary sensors while retaining a common compact platform.
Product Models

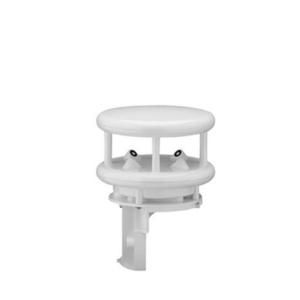

Compact Weather Station 9620
- Model 9620 Compact Weather Station
- Ultrasonic wind speed and direction measurement
- Integrated electronic compass
- Full-circle wind direction monitoring
- Compact lightweight outdoor configuration
- Suitable for standalone or integrated weather systems

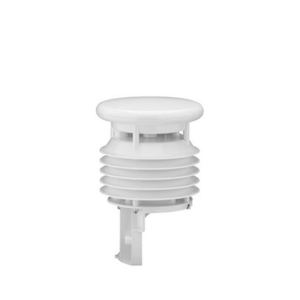

Compact Weather Station 9621
- Model 9621 Compact Weather Station
- Air temperature and relative humidity measurement
- Integrated barometric pressure measurement
- Ventilated radiation-protected sensor housing
- Supports derived humidity and atmospheric variables
- Compact solution for basic meteorological monitoring

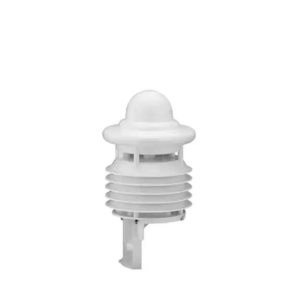

Compact Weather Station 9622
- Model 9622 Compact Weather Station
- Air temperature and relative humidity measurement
- Integrated barometric pressure measurement
- Radar-based precipitation measurement
- Detects rain and snow precipitation
- Suitable for compact precipitation and atmospheric monitoring

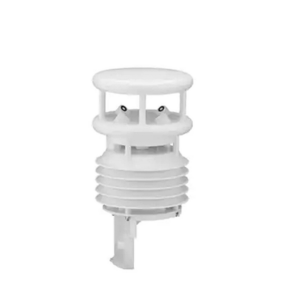

Compact Weather Station 9623
- Model 9623 Compact Weather Station
- Temperature, humidity and air pressure measurement
- Ultrasonic wind speed and direction sensing
- Integrated electronic compass
- Compact multi-parameter meteorological monitoring
- Suitable for automated weather installations

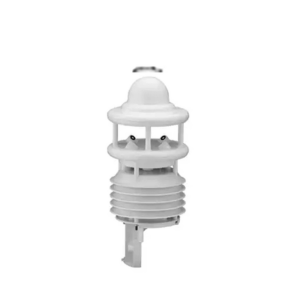

Compact Weather Station 9624
- Model 9624 Compact Weather Station
- Temperature, humidity and air pressure measurement
- Radar-based precipitation measurement
- Ultrasonic wind speed and direction sensing
- Integrated electronic compass
- Comprehensive compact weather monitoring configuration

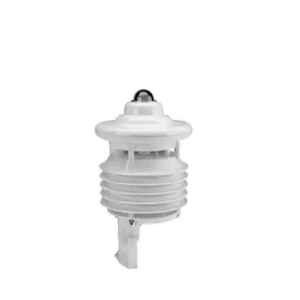

Compact Weather Station 9625
- Model 9625 Compact Weather Station
- Temperature and relative humidity measurement
- Integrated barometric pressure measurement
- Solar radiation measurement
- Thermopile pyranometer sensing
- Suitable for environmental and solar-related weather monitoring

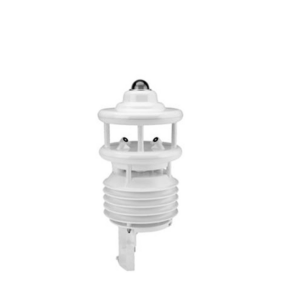

Compact Weather Station 9626
- Model 9626 Compact Weather Station
- Temperature, humidity and air pressure measurement
- Ultrasonic wind speed and direction sensing
- Integrated electronic compass
- Solar radiation measurement
- Multi-parameter weather monitoring without precipitation sensing
The Compact Weather Station provides lightweight, all-in-one meteorological monitoring for environmental, infrastructure and automated weather applications. The 9620 Series combines configurable measurements such as temperature, humidity, air pressure, precipitation, ultrasonic wind, compass direction and solar radiation in compact weatherproof instruments that can operate as standalone sensors or integrate with larger automated weather systems.
Key Features
- Lightweight all-in-one weather monitoring platform
- Multiple sensor configurations for different applications
- Accurate temperature, humidity and pressure measurement
- Ultrasonic wind measurement on selected models
- Radar-based precipitation measurement on selected models
- Integrated compass on wind-enabled configurations
- Solar radiation measurement available on selected models
- Suitable for standalone or integrated automated weather systems
The seven-model range allows the monitoring package to be matched to the actual site requirement, avoiding unnecessary sensors while retaining a common compact platform.
Additional information
| Models | Compact Weather Station 9620, Compact Weather Station 9621, Compact Weather Station 9622, Compact Weather Station 9623, Compact Weather Station 9624, Compact Weather Station 9625, Compact Weather Station 9626 |
|---|
