Tipping Bucket Rain Gauge
Professional tipping bucket rain gauge for rainfall and accumulated precipitation measurement, with heated, unheated and high-accuracy configurations for AWOS and meteorological monitoring.
Typical Applications
- Automated Weather Observing Systems (AWOS)
- Airport precipitation monitoring
- Meteorological weather stations
- Rainfall accumulation monitoring
- Hydrometeorological networks
- Environmental and rainfall data logging
Product Enquiry
Tipping Bucket Rain Gauge
Professional tipping bucket rain gauge for rainfall and accumulated precipitation measurement, with heated, unheated and high-accuracy configurations for AWOS and meteorological monitoring.
Typical Applications
- Automated Weather Observing Systems (AWOS)
- Airport precipitation monitoring
- Meteorological weather stations
- Rainfall accumulation monitoring
- Hydrometeorological networks
- Environmental and rainfall data logging
The Tipping Bucket Rain Gauge provides reliable measurement of rainfall and accumulated precipitation for Automated Weather Observing Systems, meteorological stations and environmental monitoring networks. Precipitation is collected through a precision collector and directed into a tipping-bucket mechanism that produces a magnetic switch pulse for each calibrated amount of rainfall, enabling simple integration with data loggers, AWOS displays and automated precipitation monitoring systems.
Key Features
- Accurate tipping-bucket precipitation measurement
- Magnetic reed-switch output for data logging
- Knife-edge collector for improved rainfall catch
- Splash-out protection to reduce wind-related errors
- Integrated bubble level for installation
- Weather-resistant aluminum construction
- Heated and unheated configurations available
- Siphon configurations available for improved heavy-rainfall performance
Heated versions allow the water equivalent of snow and freezing rain to be measured, while RGTE siphon configurations help improve repeatability during very heavy precipitation by controlling flow into the tipping mechanism.
Product Models

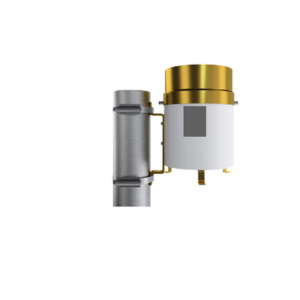

Tipping Bucket Rain Gauge 6022 Series
- Model 6022 Tipping Bucket Rain Gauge Series
- Includes 6012-A unheated and 6022-A heated configurations
- Tipping bucket precipitation measurement
- 0.01 in (0.25 mm) measurement resolution
- Calibrated accuracy ±1% from 0 to 2 in/hr
- Precipitation measurement rate up to 700 mm/hr
- Magnetic momentary-contact reed switch output
- Knife-edge rainfall collector
- Heated 6022-A supports snow and freezing-rain measurement
- Suitable for AWOS and data-logger integration

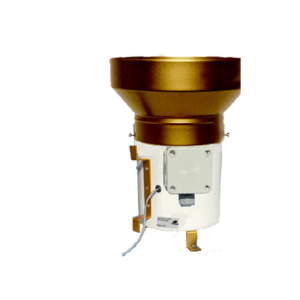

Tipping Bucket Rain Gauge RGTE Series
- RGTE Series Tipping Bucket Rain Gauge
- Available with 0.1 mm or 0.2 mm measurement per tip
- Heated and unheated configurations available
- 110 VAC and 220 VAC heated configurations available
- Optional siphon versions for heavy-precipitation accuracy
- Measurement rate up to 700 mm/hr
- Calibrated accuracy ±1% from 0 to 50 mm/hr
- Gold-anodized aluminum collector
- Integrated bubble level for installation
- Suitable for AWOS and data-acquisition systems
The Tipping Bucket Rain Gauge provides reliable measurement of rainfall and accumulated precipitation for Automated Weather Observing Systems, meteorological stations and environmental monitoring networks. Precipitation is collected through a precision collector and directed into a tipping-bucket mechanism that produces a magnetic switch pulse for each calibrated amount of rainfall, enabling simple integration with data loggers, AWOS displays and automated precipitation monitoring systems.
Key Features
- Accurate tipping-bucket precipitation measurement
- Magnetic reed-switch output for data logging
- Knife-edge collector for improved rainfall catch
- Splash-out protection to reduce wind-related errors
- Integrated bubble level for installation
- Weather-resistant aluminum construction
- Heated and unheated configurations available
- Siphon configurations available for improved heavy-rainfall performance
Heated versions allow the water equivalent of snow and freezing rain to be measured, while RGTE siphon configurations help improve repeatability during very heavy precipitation by controlling flow into the tipping mechanism.
Additional information
| Models | Tipping Bucket Rain Gauge 6022 Series, Tipping Bucket Rain Gauge RGTE Series |
|---|
