Temperature & Humidity Sensor
Precision temperature and relative humidity probe for AWOS, airport meteorological and professional environmental monitoring applications.
Typical Applications
- Automated Weather Observing Systems (AWOS)
- Airport temperature and humidity monitoring
- Aviation meteorological stations
- Professional weather stations
- Environmental monitoring networks
- Dew point and atmospheric monitoring systems
Product Enquiry
Temperature & Humidity Sensor
Precision temperature and relative humidity probe for AWOS, airport meteorological and professional environmental monitoring applications.
Typical Applications
- Automated Weather Observing Systems (AWOS)
- Airport temperature and humidity monitoring
- Aviation meteorological stations
- Professional weather stations
- Environmental monitoring networks
- Dew point and atmospheric monitoring systems
The Temperature & Humidity Sensor provides high-accuracy atmospheric temperature and relative humidity measurement for Automated Weather Observing Systems (AWOS), airport meteorological stations and professional environmental monitoring. The sensor combines a precision Pt100 resistance temperature detector with a stable thin-film capacitive humidity element, delivering low-drift measurements, low power consumption and dependable operation across demanding outdoor conditions.
Key Features
- High-accuracy temperature and relative humidity measurement
- Precision Pt100 RTD temperature sensing
- Stable thin-film capacitive humidity sensing
- Low measurement drift for long-term monitoring
- Wide outdoor operating temperature range
- Low power consumption for remote installations
- Linear analog temperature and humidity outputs
- FAA-certified design for aviation weather applications
The sensor is compatible with both motor-aspirated and self-aspirated radiation shields, allowing the installation method to be matched to available power and meteorological accuracy requirements.
Product Models

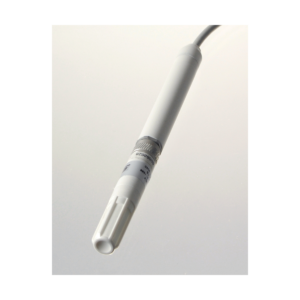

Temperature & Humidity Sensor 5190-F
- Model 5190-F Temperature & Humidity Probe
- Pt100 RTD precision temperature sensor
- Thin-film capacitive relative humidity sensor
- Temperature accuracy ±0.1°C at 23°C
- Relative humidity accuracy ±1.5% RH at 23°C
- Operating temperature range -40°C to +60°C
- Low-current 5–24 VDC operation
- Compatible with MARS and SARS radiation shields
- FAA-certified for aviation meteorological applications
The Temperature & Humidity Sensor provides high-accuracy atmospheric temperature and relative humidity measurement for Automated Weather Observing Systems (AWOS), airport meteorological stations and professional environmental monitoring. The sensor combines a precision Pt100 resistance temperature detector with a stable thin-film capacitive humidity element, delivering low-drift measurements, low power consumption and dependable operation across demanding outdoor conditions.
Key Features
- High-accuracy temperature and relative humidity measurement
- Precision Pt100 RTD temperature sensing
- Stable thin-film capacitive humidity sensing
- Low measurement drift for long-term monitoring
- Wide outdoor operating temperature range
- Low power consumption for remote installations
- Linear analog temperature and humidity outputs
- FAA-certified design for aviation weather applications
The sensor is compatible with both motor-aspirated and self-aspirated radiation shields, allowing the installation method to be matched to available power and meteorological accuracy requirements.
Additional information
| Models | Temperature & Humidity Sensor 5190-F |
|---|
